GDB13

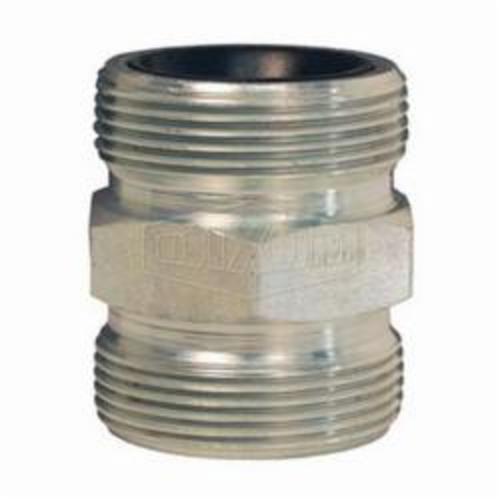

Dixon® GDB13 Boss™ Ground Joint Double Spud, 1 in Nominal, Steel
- CP#:
- Item#: GDB13
- Mfr#: GDB13
- The spuds parts of the coupling serves as one half of the boss ground joints connections and is usually fixed to the equipment
- The stem parts than is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spuds, when connected they achieve both a mechanical, and a pressure seal
- Positive metal to polymer seal
- Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spuds
- The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
- Easy to seal
- Recommended for steam service up to 450 deg F
- Polymer seat
- Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
- Boss couplings supply a convenient threaded fittings to connect two lengths of hose, or a single lengths to a male or female threaded outlet
- Use with boss ground joints fittings
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- For air, water, fluid petroleum, chemicals and liquids petroleum gas up to 1 in ID
- Do not use in connections with drinking water, Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Ground Joint Double Spud, Series: Boss™, Fitting/Connector: Spud, 1 in Nominal, 1-7/8 in Hex, Steel, Plated, 2-3/16 in L Dimensions
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and/or one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 2-3/16 in L |
| Finish | : | Plated |
| Hex Size | : | 1-7/8 in |
| Series | : | Boss™ |
| Fitting/Connector Type | : | Spud |
| Nominal Size | : | 1 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB13C_Catalog.pdf -
VIDEO LINK
https://dixonvalve.com/sites/default/files/product/files/videos/GJ%20Boss%20Seal.mp4
