GB36

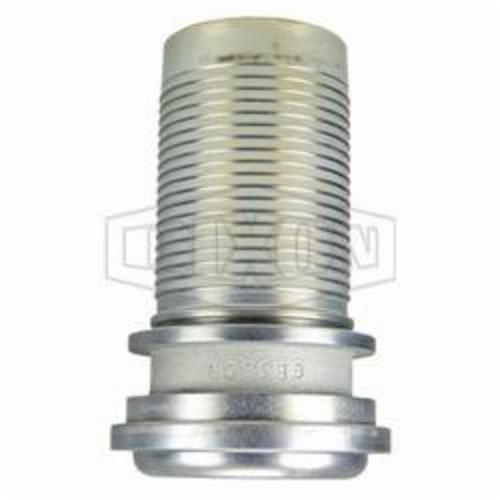

Dixon® GB36 Boss™ Ground Joint Stem, 3 in, Iron, Domestic
- CP#:
- Item#: GB36
- Mfr#: GB36
- The stem part that is clamped to the hose is one half of the boss ground joint connection
- The boss ground joint spud part of the coupling serves as the other half and is usually fixed to the equipment
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Easy to seal
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the boss ground joint spud
- Has a machined shank to accepts a Boss, clamp, king crimp sleeve or a ferrule
- Recommended for steam service up to 450 deg F
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Ground Joint Stem, Series: Boss™, Stem, 3 in Nominal, Iron, Plated, 4-1/4 in Dia x 7-1/2 in L, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Dimensions | : | 4-1/4 in Dia x 7-1/2 in L |
| Finish | : | Plated |
| Series | : | Boss™ |
| Fitting/Connector Type | : | Stem |
| Nominal Size | : | 3 in |
| Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DATL016W_Catalog.pdf
