GB16

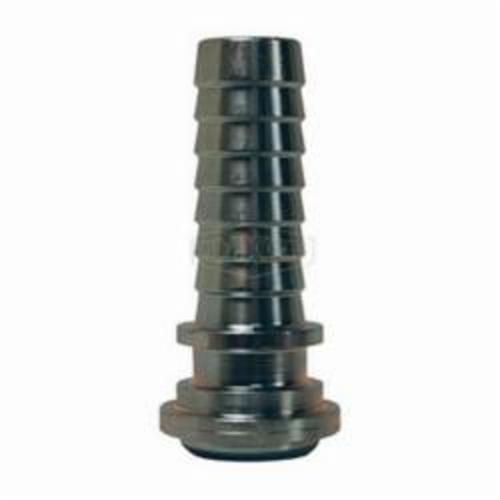

Dixon® Boss™ GB16 Ground Joint Stem, Stem, 1-1/4 in, Hose Shank x NPT, Iron

  • Item#: GB16
  • Mfr#: GB16
  • The stem part that is clamped to the hose is one half of the Boss™ ground joint connection
  • The Boss™ ground joint spud part of the coupling serves as the other half and is usually fixed to the equipment
  • The two halves are connected or disconnected by rotating the wing nut on the spud
  • When connected they achieve both a mechanical, and a pressure seal
  • Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the Boss™ ground joint spud
  • Easy to seal
  • For air, water, fluid petroleum, chemicals and liquids petroleum gas up to 1 in ID
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Boss™ Ground Joint Stem, Fitting/Connector: Stem, 1-1/4 in Nominal, Hose Shank x NPT End Style, 5-1/16 in Length, 450 deg F, Iron, Plated

SPECIFICATIONS

Finish      :      Plated
Length      :      5-1/16 in
Temperature Rating      :      450 deg F
Fitting/Connector Type      :      Stem
Nominal Size      :      1-1/4 in
End Style      :      Hose Shank x NPT
Material      :      Iron

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB11_Catalog.pdf
