GAM13

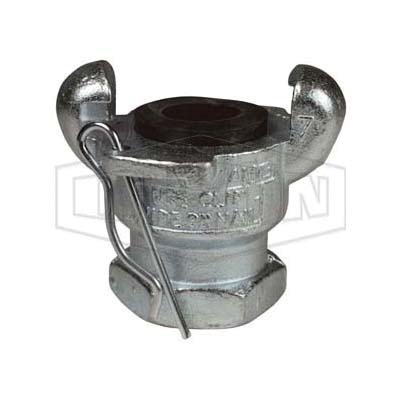

Dixon® GAM13 Global Air King™ Universal Hose End Coupling, 1 in, FNPT, Steel, Plated, Domestic
- CP#:
- Item#: GAM13
- Mfr#: GAM13
- UPC: 089109712137
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
- Supplied with rubber washer, part no AWR4
- Rubber seal
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- 150 psi at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hose End Coupling, Universal, Series: Global Air King™, 1 in Nominal, FNPT, 2 in Length, 1-5/8 in Hex, 150 psi, Steel, Plated, 2-1/2 in W, Domestic
SPECIFICATIONS
| Dimensions | : | 2-1/2 in W |
| Hex Size | : | 1-5/8 in |
| Length | : | 2 in |
| Pressure Rating | : | 150 psi |
| Series | : | Global Air King™ |
| Type | : | Universal |
| Nominal Size | : | 1 in |
| End Style | : | FNPT |
| Material | : | Steel |
| Finish | : | Plated |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_QM4_Catalog.pdf
