G400-F-AL

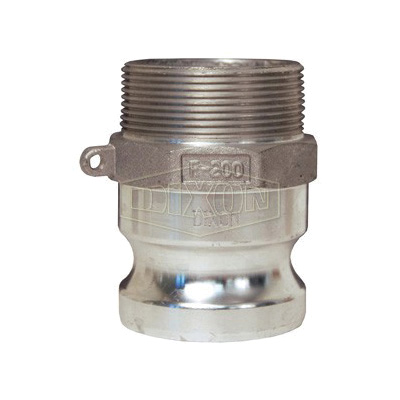

Dixon® G400-F-AL Type F Cam and Groove Adapter, 4 in, Male Adapter x MNPT, Aluminum, Import
- CP#:
- Item#: G400-F-AL
- Mfr#: G400-F-AL
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 100 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 4 in Nominal Size, Male Adapter x MNPT, 4-1/2 in Length, 100 psi, Aluminum, 4-23/32 in Dia, Import
SPECIFICATIONS
| Dimensions | : | 4-23/32 in Dia |
| Length | : | 4-1/2 in |
| Pressure Rating | : | 100 psi |
| Fitting/Connector Type | : | Adapter |
| Type | : | Type F |
| Nominal Size | : | 4 in |
| End Style | : | Male Adapter x MNPT |
| Material | : | Aluminum |
| Domestic/Import | : | Import |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_G400-F-AL_Catalog.pdf -
VIDEO LINK
http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
