- Dixon® G125-B-AL
G125-B-AL

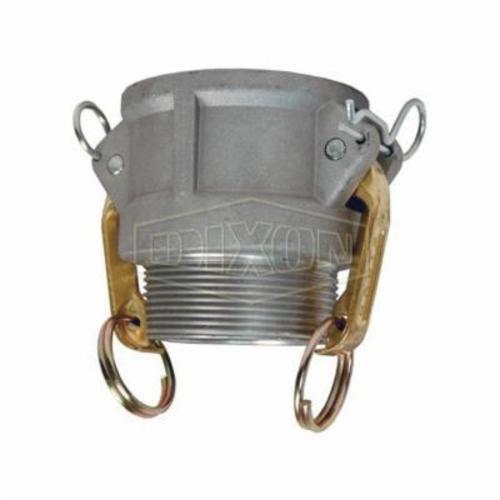

Dixon® G125-B-AL Type B Cam and Groove Coupler, 1-1/4 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic
- CP#:
- Item#: G125-B-AL
- Mfr#: G125-B-AL
- 6-27/32 in open x 3-1/4 in closed across cam arm
- Buna seals construction
- A380 permanent mold aluminum
- Stainless steel handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 1-1/4 in Nominal, Female Coupler x MNPT End Style, 3-1/16 in Length, 250 psi Pressure, Aluminum, Domestic
SPECIFICATIONS
| Length | : | 3-1/16 in |
| Pressure Rating | : | 250 psi |
| Fitting/Connector Type | : | Coupling |
| Type | : | Type B |
| Nominal Size | : | 1-1/4 in |
| End Style | : | Female Coupler x MNPT |
| Material | : | Aluminum |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_G125-B-AL_Catalog.pdf -
VIDEO LINK
http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
