G100-A-SS

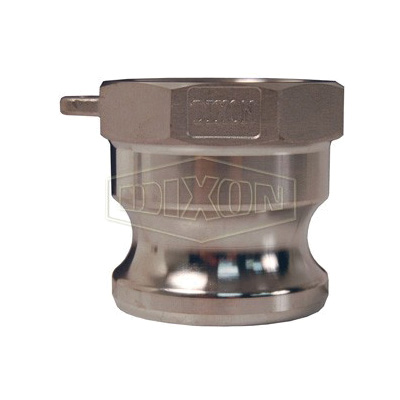

Dixon® G100-A-SS Type A Cam and Groove Adapter, 1 in, Male Adapter x FNPT, 316 Stainless Steel, Import
- CP#:
- Item#: G100-A-SS
- Mfr#: G100-A-SS
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x FNPT, 1-7/8 in Length, 250 psi, 316 Stainless Steel, Import
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Length | : | 1-7/8 in |
| Pressure Rating | : | 250 psi |
| Fitting/Connector Type | : | Adapter |
| Type | : | Type A |
| Nominal Size | : | 1 in |
| End Style | : | Male Adapter x FNPT |
| Material | : | 316 Stainless Steel |
| Domestic/Import | : | Import |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_G100-A-SS_Catalog.pdf -
VIDEO LINK
http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
