FL64-4

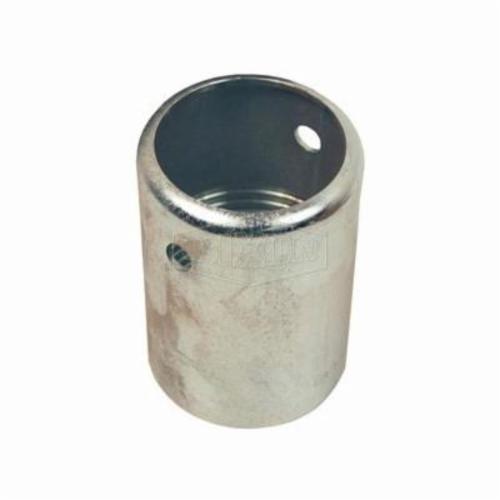

Dixon® FL64-4 Holedall™ Long External Swage Ferrule, 4 in ID x 4-61/64 to 5-4/64 in OD Nominal, Carbon Steel, Hose End Style, 7-3/16 in L, Domestic

• CP#:
• Item#: FL64-4
• Mfr#: FL64-4

• The coupling system requires no bolts and results in a clean coupling with no protrusions
• The holedall coupling provides long lasting efficiency and safety
• Style FL ferrules are extra long and are used with all long style external swage stems - TML, TGL and TPL styles
• The selection of ferrules is very important to achieve proper coupling-to-hose assembly
• Dixon®holedall stems and ferrules are specifically designed to be used together as a coupling system
• Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon®holedall products
• Do not use a wrench or vice on ferrule
• The selection of ferrules is very important to achieve the proper coupling-to-hose assembly
• Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
• Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
• Externally swaged holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon®s assembly procedures, using correct die and ferrule for that particular hose end OD
• Dixon®s die and ferrule recommendation guide is to be used to select correct dies and ferrules
• Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
• The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
• Media being transported through the hose should be compatible with the stem material
• Compatibility of ferrule material with the environment in which it will be used is recommended
• Do not use in connection with drinking water
• Wash hands after handling
