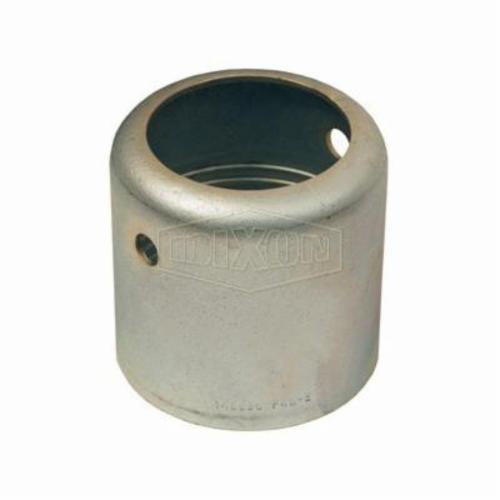

Dixon® F20-2 Holedall™ Standard External Swage Ferrule, 1-1/4 in ID x 1-49/64 to 1-56/64 in OD Nominal, Carbon Steel, Hose End Style, 2-7/8 in L, Domestic
- CP#:
- Item#: F20-2
- Mfr#: F20-2
- The coupling system requires no bolts and results in a clean coupling with no protrusions
- The holedall coupling provides long lasting efficiency and safety
- Style F ferrules are used with all standard length external swage stems - TM, TMR, TP, TPR, TG and TGR styles
- The selection of ferrules is very important to achieve proper coupling-to-hose assembly
- Dixon®holedall stems and ferrules are specifically designed to be used together as a coupling system
- Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon®holedall products
- Do not use a wrench or vice on ferrule
- The selection of ferrules is very important to achieve the proper coupling-to-hose assembly
- Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
- Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
- Externally swaged holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon®s assembly procedures, using correct die and ferrule for that particular hose end OD
- Dixon®s die and ferrule recommendation guide is to be used to select correct dies and ferrules
- Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
- The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
- Media being transported through the hose should be compatible with the stem material
- Compatibility of ferrule material with the environment in which it will be used is recommended
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® External Swage Ferrule, Standard, Series: Holedall™, 1-1/4 in ID x 1-49/64 to 1-56/64 in OD Nominal, Hose, 2-7/8 in Length, Carbon Steel, Plated, 2-1/4 in Dia, Domestic
SPECIFICATIONS
| Dimensions | : | 2-1/4 in Dia |
| Finish | : | Plated |
| Series | : | Holedall™ |
| Type | : | Standard |
| Nominal Size | : | 1-1/4 in ID x 1-49/64 to 1-56/64 in OD |
| Material | : | Carbon Steel |
| End Style | : | Hose |
| Length | : | 2-7/8 in |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_F20-2_Catalog.pdf
