DM5

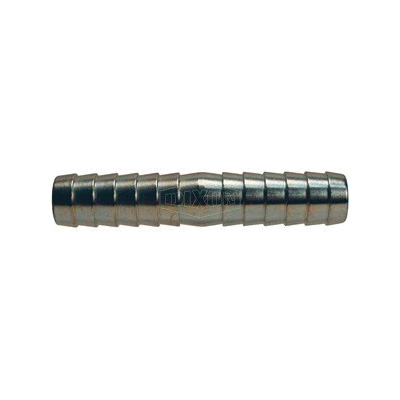

Dixon® DM5 Hose Mender, 5/8 in, Hose Shank, Steel, Domestic
- CP#:
- Item#: DM5
- Mfr#: DM5
- UPC: 089109784721
- Hose mender for repairing hoses
- Connects to a hose on both ends
- Zinc plated steel for greater corrosion resistance than unplated steel
- Barbed fitting for a tight seal on hoses
- Not for compressible products such as air, nitrogen, or steam
- For use with a hose clamps or crimp sleeve or ferrule
- Menders are not for compressible products such as air, nitrogen or steam
- The working pressure may vary with the construction of the hose, the type of clamping system used and the application
- In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hose Mender, Fitting/Connector Type: Coupling, 5/8 in Nominal, Hose Shank End Style, 3-1/2 in Length, Steel, Zinc Plated, 21/32 in Dia, Domestic
SPECIFICATIONS
| Dimensions | : | 21/32 in Dia |
| Finish | : | Zinc Plated |
| Length | : | 3-1/2 in |
| Fitting/Connector Type | : | Coupling |
| Nominal Size | : | 5/8 in |
| End Style | : | Hose Shank |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_DM5_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=L1hhJ3JoR6Y&list=PL10BD55ADAF82DEDA&feature=share&index=21
