DL32

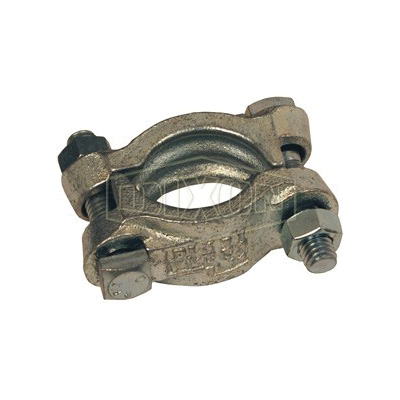

Dixon® DL32 Double Bolt Clamp, 2-20/64 to 2-40/64 in Nominal, Carbon Steel Band, Domestic
- CP#:
- Item#: DL32
- Mfr#: DL32
- Inner surface has dual gripping ridges
- Bolt lugs are reinforced to prevent bending out of alignment
- Torque values for clamps are based on dry bolts
- The use of lubricant on bolts will adversely effect clamp performance
- Consult Dixon when using double bolt clamps on helical wire hose
- Measure hose OD accurately before ordering clamps
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Bolt Clamp, Double, 2-20/64 to 2-40/64 in Nominal Size, 4 in Length, 40 ft-lb, Carbon Steel Band, Zinc Plated, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Finish | : | Zinc Plated |
| Length | : | 4 in |
| Torque Rating | : | 40 ft-lb |
| Type | : | Double |
| Nominal Size | : | 2-20/64 to 2-40/64 in |
| Band Material | : | Carbon Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_DL14_Catalog.pdf
