DC2502

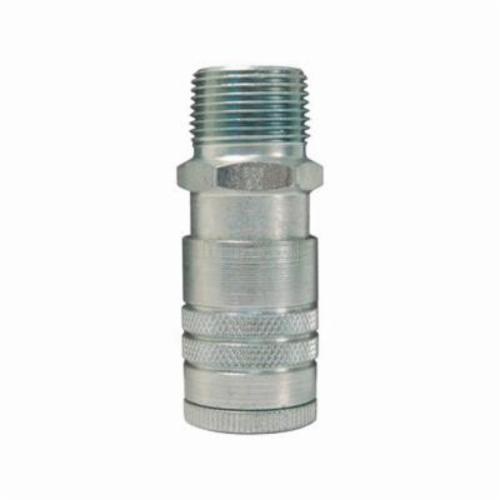

Dixon® DC2502 Air Chief Industrial Automotive Male Quick Connect Coupler, 1/4-18 Nominal, Quick Connect Coupler x NPTF, 300 psi Pressure, Steel, Domestic

  • Item#: DC2502
  • Mfr#: DC2502
  • UPC: 640027080885
    • Semi-automatic- pull sleeve to connect
    • Couplers shut-off when disconnected
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Male Quick Connect Coupler, Air Chief Industrial Automotive, 1/4-18 Nominal, Quick Connect Coupler x NPTF End Style, 7/8 in Hex, 2.45 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 1.06 in OD, Domestic

SPECIFICATIONS

Dimensions      :      1.06 in OD
Finish      :      Polished Chrome
Hex Size      :      7/8 in
Length      :      2.45 in
Series      :      D Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Air Chief Industrial Automotive
Nominal Size      :      1/4-18
End Style      :      Quick Connect Coupler x NPTF
Pressure Rating      :      300 psi
Material      :      Steel
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_DC2502_Catalog.pdf
