D3S2

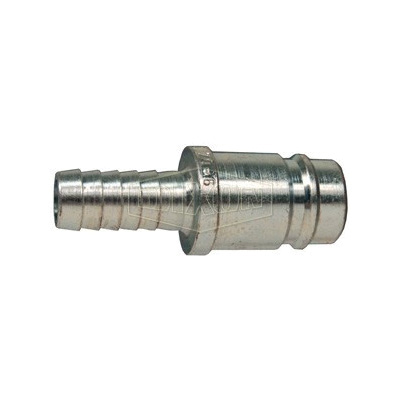

Dixon® D3S2 DF Series Industrial Quick Connect Plug, 3/8 in Nominal, Quick Disconnect Plug x Standard Hose Barb, 300 psi Pressure, Steel, Domestic

  • Item#: DCP2542
  • Mfr#: D3S2
    • Machined components are manufactured using solid bar stock
    • Steel componentry is plated using ROHS compliant trivalent chrome
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Quick Connect Plug, Industrial, Series: DF Series, 3/8 in Nominal, Quick Disconnect Plug x Standard Hose Barb End Style, 2.21 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 0.75 in OD, Domestic

SPECIFICATIONS

Dimensions      :      0.75 in OD
Length      :      2.21 in
Series      :      DF Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Industrial
Nominal Size      :      3/8 in
End Style      :      Quick Disconnect Plug x Standard Hose Barb
Pressure Rating      :      300 psi
Material      :      Steel
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_DCP2542_Catalog.pdf
