BU9

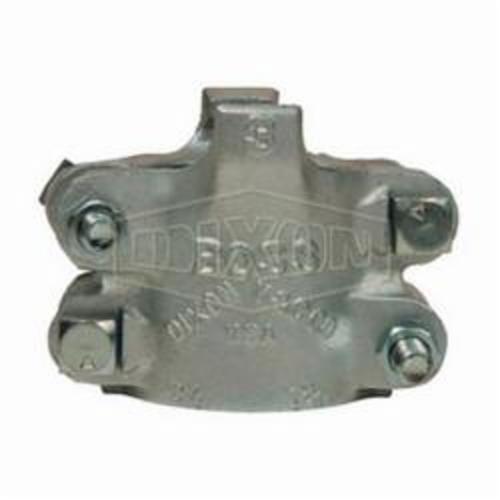

Dixon® BU9 Boss™ 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band
- CP#:
- Item#: BU9
- Mfr#: BU9
- Recommended for steam service up to 450 deg F
- Replacement nuts and bolts are available
- Two gripping fingers and two clamps sections
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
- These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts
- The use of lubricant on bolts will adversely effect clamps performance
- Do not lubricate nuts and bolts
- Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter
- Always tighten bolts to their specified torque values
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss clamps are for single use only, once removed they are to be discarded
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- Do not use in connections with drinking water
- Wash hands after handling
- Global investment cast carbon steel
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® 2-Bolt Clamp, Series: Boss™, 3/4 in Inside Dia, 1-10/64 to 1-20/64 in Outside Dia, 2-31/32 in Length, 2-9/16 in Width, 9/16 in Hex Bolt, 21 ft lb, Iron Band, Zinc Plated
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Bolt Size | : | 9/16 in Hex |
| Finish | : | Zinc Plated |
| Length | : | 2-31/32 in |
| Series | : | Boss™ |
| Torque Rating | : | 21 ft-lb |
| Width | : | 2-9/16 in |
| Inside Diameter | : | 3/4 in |
| Outside Diameter | : | 1-10/64 to 1-20/64 in |
| Band Material | : | Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_B14_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_BU9_Full_Engineering_Drawing.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=opJzyrWzvjw&list=PL10BD55ADAF8
