BU22

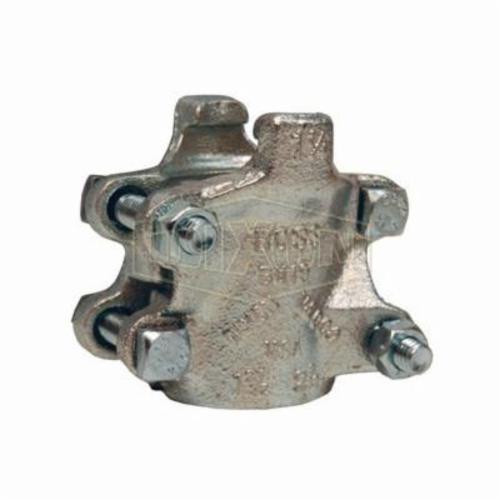

Dixon® BU22 Boss™ 4-Bolt Hose Clamp, 1-1/2 in ID x 1-52/64 to 2 in OD, Iron Band, Domestic
- CP#:
- Item#: BU22
- Mfr#: BU22
- 4-bolt type with 2 gripping fingers and 2 clamp sections
- Recommended for steam service up to 450 deg F
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts, the use of lubricant on bolts will adversely effect clamp performance
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hose Clamp, 4-Bolt, Series: Boss™, 1-1/2 in Inside Dia, 1-52/64 to 2 in Outside Dia, 3-13/16 in Length, 4 in Width, 40 ft-lb, Iron Band, Zinc Plated, Domestic
SPECIFICATIONS
| Finish | : | Zinc Plated |
| Length | : | 3-13/16 in |
| Series | : | Boss™ |
| Torque Rating | : | 40 ft-lb |
| Type | : | 4-Bolt |
| Width | : | 4 in |
| Inside Diameter | : | 1-1/2 in |
| Outside Diameter | : | 1-52/64 to 2 in |
| Band Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_225_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=wYrt27WXkqY&feature=share&list=PL10BD55ADAF82DEDA&index=9
