B29

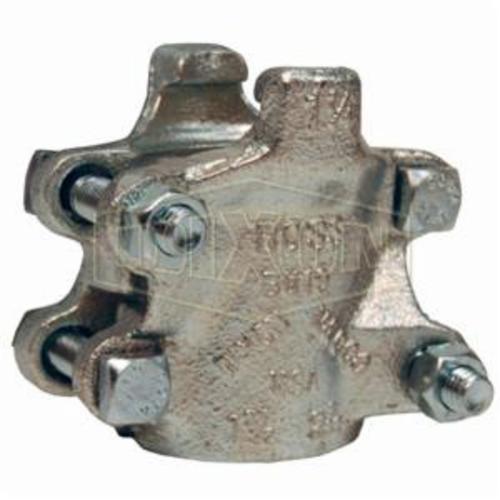

Dixon® B29 Boss™ 4-Bolt Clamp, 2-48/64 to 3-4/64 in Nominal, Iron Band, Domestic
- CP#:
- Item#: B29DIX
- Mfr#: B29
- 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Boss™ clamps are for single use only, once removed they are to be discarded
- Recommended for steam service up to 450 deg F
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts, the use of lubricant on bolts will adversely effect clamp performance
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® 4-Bolt Clamp, Series: Boss™, 2-48/64 to 3-4/64 in Nominal, 5-1/16 in Length, 4-5/16 in Width, 60 ft-lb, Iron Band, Zinc Plated, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Finish | : | Zinc Plated |
| Length | : | 5-1/16 in |
| Series | : | Boss™ |
| Torque Rating | : | 60 ft-lb |
| Width | : | 4-5/16 in |
| Nominal Size | : | 2-48/64 to 3-4/64 in Hose |
| Band Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_187_Catalog.pdf -
VIDEO LINK
http://youtu.be/NuQJUieHqHo?list=PL10BD55ADAF82DEDA
