AMC1

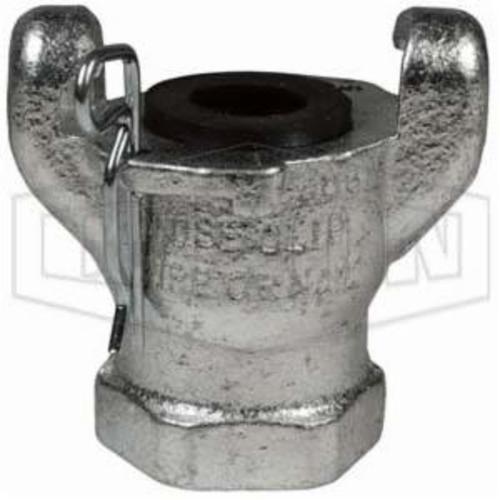

Dixon® AMC1 Air King™ Universal Hose End, 1/4 in, FNPT, Iron, Domestic
- CP#:
- Item#: AMC1
- Mfr#: AMC1
- Rubber seal
- Supplied with AWR4 rubber washer
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one air king safety clip or wire type retainer is required for each air king universal coupling
- Air king is for air and water service only
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Universal Hose End, Series: Air King™, 1/4 in Nominal, FNPT, 2-13/32 in Length, 150 psi, Iron, 2-1/2 in W, Domestic
SPECIFICATIONS
| Dimensions | : | 2-1/2 in W |
| Length | : | 2-13/32 in |
| Pressure Rating | : | 150 psi |
| Series | : | Air King™ |
| Nominal Size | : | 1/4 in |
| End Style | : | FNPT |
| Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_A10_Catalog.pdf
