8VEPF8

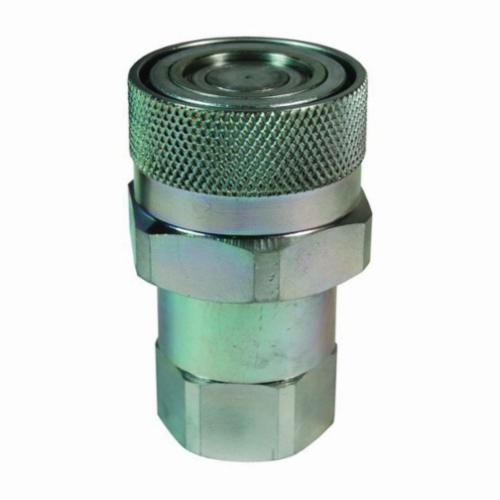

Dixon® 8VEPF8 VEP Hydraulic Coupler, 1 in x 1-11-1/2 Nominal, Hose x Female NPTF, Steel, Domestic
- CP#:
- Item#: 8VEPF8
- Mfr#: 8VEPF8
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant zinc nickel for superior corrosion resistance
- No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection
- Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures
- Two-stage valving to protect critical sealing components during pressurized connection & disconnection
- Posi-Lock valve system secures valving during surge flow conditions to prevent high-velocity damage
- TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- Interchangeable with Stucchi VEP-P/VEP-HD series, DNP PST4/FSI series, Voswinkel ft series, Parker FET-series, and Holmbury HFT series
- Valve stems have molded polyurethane seals, with a temperature range of -65 to +212 deg F
- 2.46 in OD max
- 44 mm hex
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hydraulic Coupler, Series: VEP, 1 in x 1-11-1/2 Nominal, Hose x Female NPTF, 3.89 in Length, 5500 psi, 70 deg F, Steel, Nickel Plated Zinc, Domestic
SPECIFICATIONS
| Finish | : | Nickel Plated Zinc |
| Length | : | 3.89 in |
| Pressure Rating | : | 5500 psi |
| Series | : | VEP |
| Temperature Rating | : | 70 deg F |
| Nominal Size | : | 1 in x 1-11-1/2 |
| End Style | : | Hose x Female NPTF |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10VEPF10_Catalog.pdf
