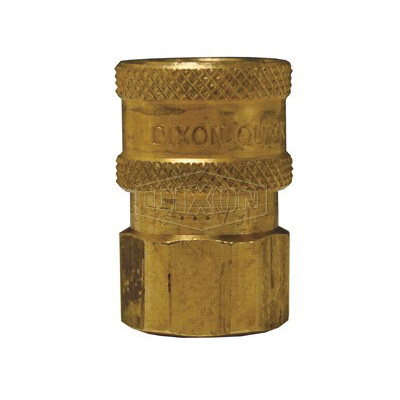

Dixon® 8EF8-B Straight Through Interchange Quick Connect Coupling, 1-11-1/2 Nominal, FNPT, Brass, Domestic

  • Item#: STFC8
  • Mfr#: 8EF8-B
    • These couplers have no internal valves, providing maximum flow with minimum pressure drop
    • Interchanges with Parker-Hannifin SST/BST, Foster FST and Hansen ST couplings
    • 1 in body
    • 2500 psi at 70 deg F pressure
    • Buna-N gasket seal
    • Do not disconnect with pressure in line
    • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
    • Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
    • Do not use in connection with drinking water
    • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Quick Connect Coupling, Straight Through Interchange, 1-11-1/2 Nominal, FNPT, 2500 psi, Brass, Domestic

⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and/or one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Pressure Rating      :      2500 psi
Type      :      Straight Through Interchange
Nominal Size      :      1-11-1/2
End Style      :      FNPT
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_STFC8_Catalog.pdf
