850451

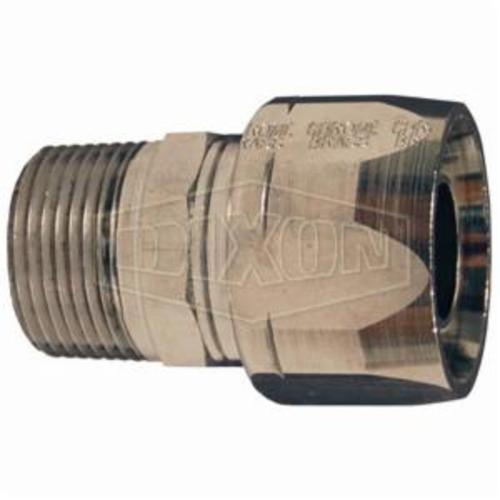

Dixon® Dubl-Grip® 850451 Re-Attachable Hose Coupling, 3/4 in Nominal, MNPT, Brass, Domestic
- CP#:
- Item#: 850451DIX
- Mfr#: 850451
- Two-piece re-attachable coupling made of chrome plated brass for pump hose
- Streamlined design prevents damage to hose and fits smartly on new pump equipment
- Wide, flat surfaces of body threads protect inside of hose from breaking
- Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing
- Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection
- Couplings have standard male NPT threads
- Worn portion of hose can be removed and Dubl-Grip® can be reapplied
- Octagonal shape
- Reattach static wire if required
- Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
- The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Dubl-Grip® Hose Coupling, Re-Attachable, 3/4 in Nominal, MNPT, 1-1/8 in Hex, Brass, Polished Chrome, 3/4 in ID x 1-1/8 in OD, Domestic
SPECIFICATIONS
| Dimensions | : | 3/4 in ID x 1-1/8 in OD |
| Finish | : | Polished Chrome |
| Hex Size | : | 1-1/8 in |
| Type | : | Re-Attachable |
| Nominal Size | : | 3/4 in |
| End Style | : | MNPT |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_850212_Catalog.pdf
