850213

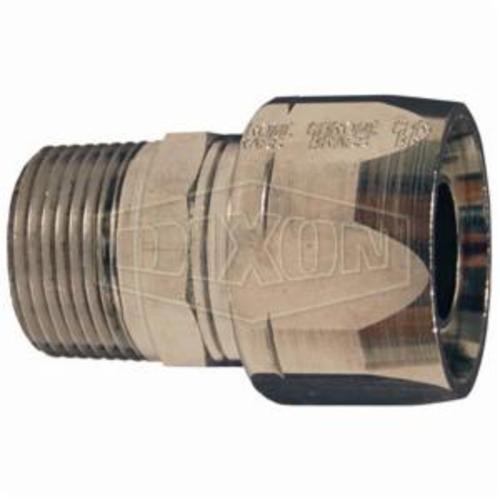

Dixon® Dubl-Grip® 850213 Re-Attachable Hose Coupling, 3/4 in Nominal, MNPT, Brass, Domestic

  • Item#: 850213DIX
  • Mfr#: 850213
  • Two-piece re-attachable coupling made of chrome plated brass for pump hose
  • Streamlined design prevents damage to hose and fits smartly on new pump equipment
  • Wide, flat surfaces of body threads protect inside of hose from breaking
  • Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing
  • Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection
  • Couplings have standard male NPT threads
  • Worn portion of hose can be removed and Dubl-Grip® can be reapplied
  • Octagonal shape
  • Reattach static wire if required
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
  • Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Dubl-Grip® Hose Coupling, Re-Attachable, 3/4 in Nominal, MNPT, 1-1/8 in Hex, 2-19/32 in Length, Brass, Polished Chrome, 5/8 in ID x 1-1/32 in OD, Domestic

SPECIFICATIONS

Dimensions      :      5/8 in ID x 1-1/32 in OD
Finish      :      Polished Chrome
Hex Size      :      1-1/8 in
Length      :      2-19/32 in
Type      :      Re-Attachable
Nominal Size      :      3/4 in
End Style      :      MNPT
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_850212_Catalog.pdf
