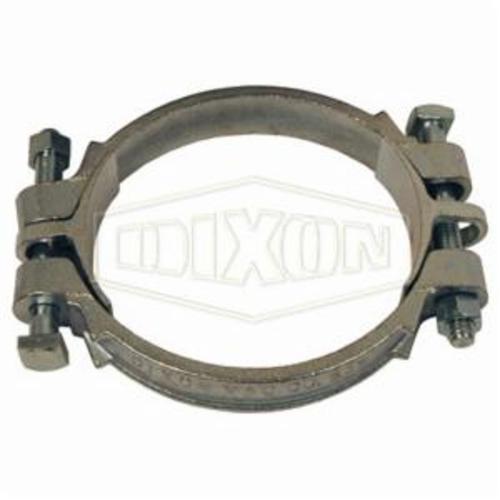

Dixon® 818 2-Bolt Clamp With Saddle, 7-44/64 to 8-12/64 in Nominal, Iron Band, Domestic
- CP#:
- Item#: 818DIX
- Mfr#: 818
- Inner surface has dual gripping ridges
- Bolt lugs are reinforced to prevent bending out of alignment
- The use of lubricant on bolts will adversely effect clamp performance
- Consult Dixon when using double bolt clamps on helical wire hose
- Measure hose OD accurately before ordering clamps
- Torque values for clamps are based on dry bolts
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® 2-Bolt Clamp, 7-44/64 to 8-12/64 in Nominal, 9 in Length, 1-3/8 in Width, 125 ft-lb, Iron Band, Zinc Plated, Domestic
SPECIFICATIONS
| Finish | : | Zinc Plated |
| Length | : | 9 in |
| Torque Rating | : | 125 ft-lb |
| Width | : | 1-3/8 in |
| Nominal Size | : | 7-44/64 to 8-12/64 in Hose |
| Band Material | : | Iron |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_818_Full_Engineering_Drawing.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DL24_Catalog.pdf -
