688X12

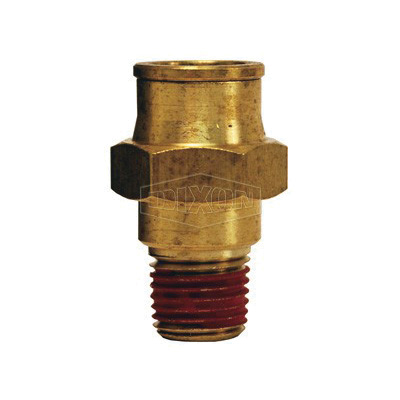

Dixon® 688X12 Push-In Connector, 3/8 x 1/4 in Nominal, MNPTF x Tube, Brass, Domestic
- CP#:
- Item#: 688X12
- Mfr#: 688X12
- Saves up to 75% of assembly time compared to the standard compression fittings
- Quick connect - Simply push tubing in, no tools required
- Quick disconnect - Hold two fingers on insert and pull tubing out, no tools required
- Reusable connect and disconnect numerous times
- Full flow design provides up to 60% more flow than conventional fittings with internal tube supports
- Positive seal - No leaks, after tubing is inserted, seal is made
- Secure tube retention, Pulling on tubing only serves to tighten the connection
- Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor
- Fittings are suitable for use up to the maximum working pressure of the plastic tubing used
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Push-In Connector, 3/8 x 1/4 in Nominal, MNPTF x Tube, -10 to 200 deg F, Brass, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Temperature Rating | : | -10 to 200 deg F |
| Nominal Size | : | 3/8 x 1/4 in |
| End Style | : | MNPTF x Tube |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_6612X12_Catalog.pdf
