688-24

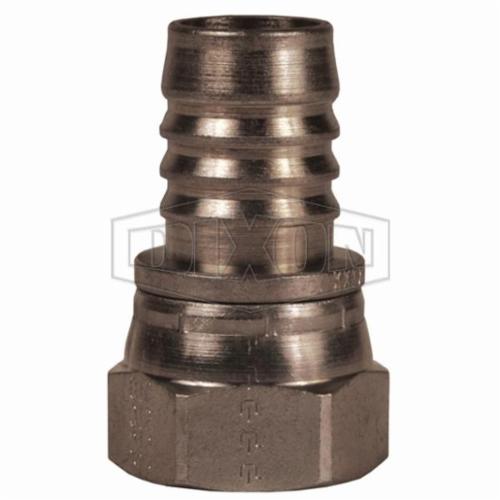

Dixon® 688-24 Suction and Return Line Hydraulic Swivel Stem, 1-7/8-12 x 1-1/2 in Nominal, 37 deg Female SAE Swivel x Hose Barb, Steel, Domestic

  • Item#: 688-24
  • Mfr#: 688-24
    • Return line clamps must be used with these fittings
    • Barbs provide easy assembly and maximum gripping action
    • Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
    • Do not use in connection with drinking water
    • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Hydraulic Swivel Stem, Suction and Return Line, 1-7/8-12 x 1-1/2 in Nominal, 37 deg Female SAE Swivel x Hose Barb, 2-1/4 in Hex, 3-21/32 in Length, Steel, Plated, Domestic

⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Finish      :      Plated
Hex Size      :      2-1/4 in
Length      :      3-21/32 in
Type      :      Suction and Return Line
Nominal Size      :      1-7/8-12 x 1-1/2 in
End Style      :      37 deg Female SAE Swivel x Hose Barb
Material      :      Steel
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_688-12_Catalog.pdf
