66C-0502

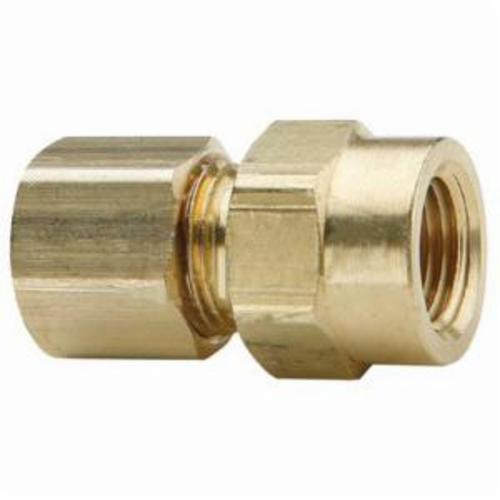

Dixon® 66C-0502 The Right Connection Compression Connector, 5/16 in x 1/8 in x 1/2-24 Nominal, Tube x NPTF x UNF End Style, Brass, Domestic
- CP#:
- Item#: 66C-0502
- Mfr#: 66C-0502
- UPC: 697464422273
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- No flaring, soldering or other preparation of tubing necessary to assemble
- Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® The Right Connection Compression Connector, Series: 66C, Fitting/Connector Type: Adapter, 5/16 in x 1/8 in x 1/2-24 Nominal, Tube x NPTF x UNF, 0.032 in Thickness, 9/16 in Hex, 1.07 in Length, 300 psi, -65 to 250 deg F, Brass, Domestic
SPECIFICATIONS
| Hex Size | : | 9/16 in |
| Length | : | 1.07 in |
| Pressure Rating | : | 300 psi |
| Series | : | 66C |
| Temperature Rating | : | -65 to 250 deg F |
| Thickness | : | 0.032 in |
| Fitting/Connector Type | : | Adapter |
| Nominal Size | : | 5/16 in x 1/8 in x 1/2-24 |
| End Style | : | Tube x NPTF x UNF |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1098_Catalog.pdf
