6612X8

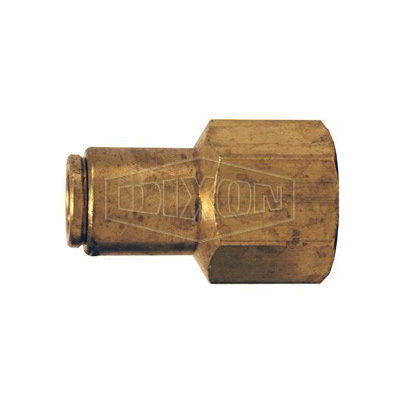

Dixon® 6612X8 Push-In Connector, 1/4 x 3/8 in Nominal, FNPT x Tube, Brass, Domestic

  • Item#: 6612X8
  • Mfr#: 6612X8
  • Saves up to 75% of assembly time compared to the standard compression fittings
  • Quick connect - Simply push tubing in, no tools required
  • Quick disconnect - Hold two fingers on insert and pull tubing out, no tools required
  • Reusable connect and disconnect numerous times
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports
  • Positive seal - No leaks, after tubing is inserted, seal is made
  • Secure tube retention, Pulling on tubing only serves to tighten the connection
  • Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used
  • Do not use in connection with drinking water
  • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Push-In Connector, 1/4 x 3/8 in Nominal, FNPT x Tube, -10 to 200 deg F, Brass, Domestic

SPECIFICATIONS

Temperature Rating      :      -10 to 200 deg F
Nominal Size      :      1/4 x 3/8 in
End Style      :      FNPT x Tube
Material      :      Brass
Domestic/Import      :      Domestic
