600-C-AL

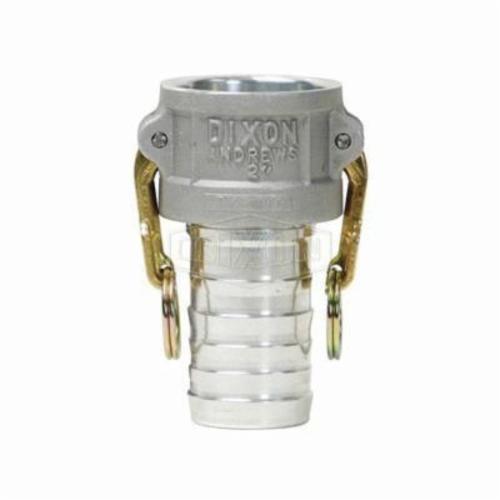

Dixon® 600-C-AL Type-C Cam and Groove Coupler, 6 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Domestic
- CP#:
- Item#: 600-C-AL
- Mfr#: 600-C-AL
- 16-1/4 in open across cam arm
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
- Buna-N gaskets
- Durable stainless steel cam arm pins
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Only use the crimp style shanks with the crimp style sleeves and ferrules, due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 6 in Nominal, Female Coupler x Hose Shank End Style, 8-21/32 in Length, 75 psi Pressure, Aluminum, Domestic
SPECIFICATIONS
| Length | : | 8-21/32 in |
| Pressure Rating | : | 75 psi |
| Fitting/Connector Type | : | Coupling |
| Type | : | Type-C |
| Nominal Size | : | 6 in |
| End Style | : | Female Coupler x Hose Shank |
| Material | : | Aluminum |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_600-C-AL_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=4itlmx5I6ok&list=PL10BD55ADAF82DEDA&feature=share&index=12
