5HTF6

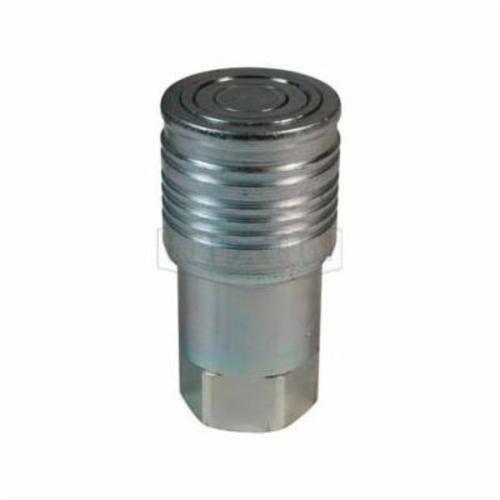

Dixon® 5HTF6 HT Series Flush Face Quick Connect Coupling, 3/4-14 Nominal, FNPT, Steel, Domestic
- CP#:
- Item#: 5HTF6
- Mfr#: 5HTF6
- UPC: 089109828531
- High flow performance, compact profile
- Easily rebuildable
- Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Couplers have polyurethane valve stem O-Ring, with a temperature range of -65 to 212 deg F
- Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- Interchangeable to ISO16028
- Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Quick Connect Coupling, Flush Face, Series: HT Series, 3/4-14 Nominal, FNPT, 1-1/2 in Hex, 3-21/64 in Length, 5000 to 20000 psi, -40 to 250 deg F, Steel, Domestic
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Hex Size | : | 1-1/2 in |
| Length | : | 3-21/64 in |
| Pressure Rating | : | 5000 to 20000 psi |
| Series | : | HT Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Flush Face |
| Nominal Size | : | 3/4-14 |
| End Style | : | FNPT |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_5HTF6_Catalog.pdf
