4HTJB5

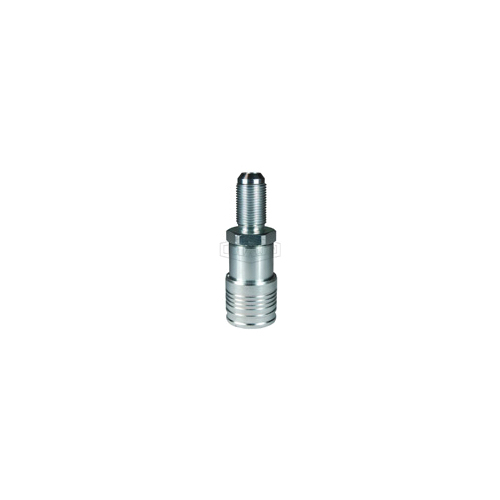

Dixon® 4HTJB5 DQC HT Flushface Male Bulkhead Coupler, 7/8-14 Nominal, Male JIC BH, Steel
- CP#:
- Item#: 4HTJB5
- Mfr#: 4HTJB5
- High flow performance, compact profile
- Easily rebuildable
- Bulkhead mountable sleeve for breakaway, multi-plate or blindmate installations
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS Compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- 1/2 in body
- Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
- Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
- Rated pressure for uncoupled steel coupler 5000 psi maximum working and 20000 psi burst
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Flushface Male Bulkhead Coupler, Series: DQC HT, 7/8-14 Nominal, Male JIC BH, 1-5/16 in Hex, 4.38 in Length, 5000 psi, Steel, Polished Chrome, 1.54 in OD
SPECIFICATIONS
| Dimensions | : | 1.54 in OD |
| Finish | : | Polished Chrome |
| Hex Size | : | 1-5/16 in |
| Length | : | 4.38 in |
| Pressure Rating | : | 5000 psi |
| Series | : | DQC HT |
| Nominal Size | : | 7/8-14 |
| End Style | : | Male JIC BH |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10W-RKIT-V2_Catalog.pdf
