48F-6-6

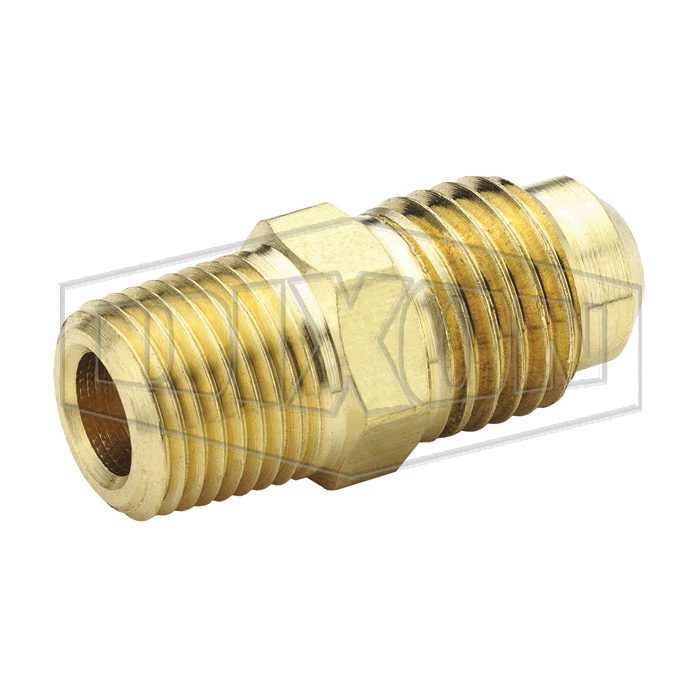

Dixon® 48F-6-6 Tube Connector, 3/8 in Nominal, SAE Flare x MNPT, Brass
- CP#:
- Item#: 48F-6-6
- Mfr#: 48F-6-6
- Economical fitting resists mechanical pullout
- Easy to disassemble and may be reassembled repeatedly, for a leak-proof connection
- 5/8-18 straight thread
- Cut tubing squarely and clean tube end thoroughly to remove burrs
- Place nut onto tube, place threaded end of nut toward end of tube
- Flare tube end with flaring tool to provide 45 deg flare
- Clamp tube flare between nut and nose of fitting body by screwing nut on finger-tight, tighten with a wrench an additional 1/4 turn for metal-to-metal seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Tube Connector, 3/8 in Nominal, SAE Flare x MNPT, 11/16 in Hex, 1000 psi, -65 to 250 deg F, Brass
SPECIFICATIONS
| Hex Size | : | 11/16 in |
| Pressure Rating | : | 1000 psi |
| Temperature Rating | : | -65 to 250 deg F |
| Nominal Size | : | 3/8 in |
| End Style | : | SAE Flare x MNPT |
| Material | : | Brass |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_46F106_Specification_Sheet.pdf
