Dixon®
3501

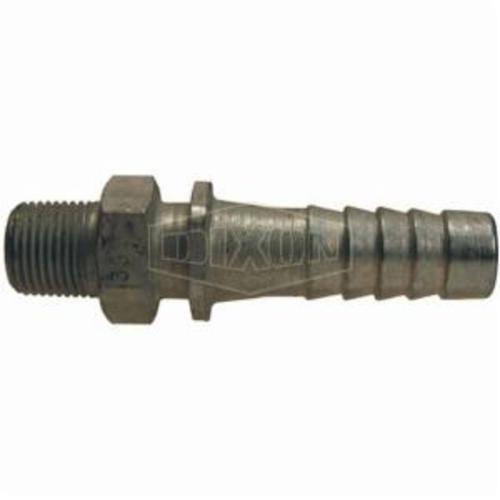

Dixon® 3501 3500 Nipple, 1/8 x 1/4 in Nominal, MNPT x Hose Shank, 600 psi Pressure, Steel, Domestic
- Item#: 3501DIX
- Mfr#: 3501
- The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
- To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
- To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
- Connect the other end of the hose to the air supply using the standard quick-acting coupling
- The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
- The whip hose should remain permanently connected to the tool
- For air and water service only
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Nipple, Series: 3500, 1/8 x 1/4 in Nominal, MNPT x Hose Shank End Style, 2-1/4 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic
SPECIFICATIONS
| Finish | : | Zinc Plated |
| Length | : | 2-1/4 in |
| Series | : | 3500 |
| Temperature Rating | : | 70 deg F |
| Nominal Size | : | 1/8 x 1/4 in |
| End Style | : | MNPT x Hose Shank |
| Pressure Rating | : | 600 psi |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
