300-E-AL

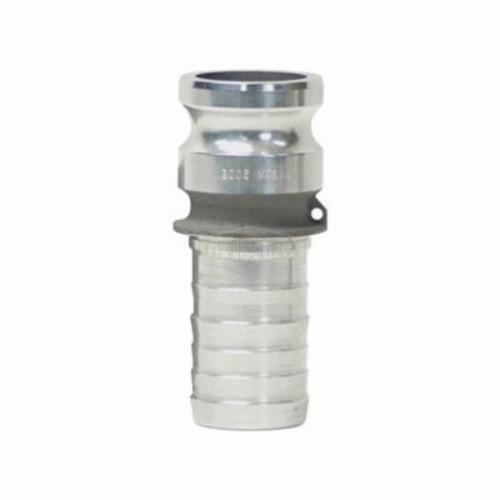

Dixon® 300-E-AL Boss-Lock™ Type E Cam and Groove Adapter, 3 in, Male Adapter x Hose Shank, Aluminum, Domestic
- CP#:
- Item#: 300-E-AL
- Mfr#: 300-E-AL
- UPC: 640024984391
- Precision machined to rigid tolerances
- Pressure rating is based on the seal of the mating part
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Only use the crimp style shanks with the crimp style sleeves and ferrules, due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Cam and Groove Adapter, Type E, Series: Boss-Lock™, Adapter, 3 in Nominal, Male Adapter x Hose Shank, 6-29/32 in Length, 125 psi, Aluminum, 3-21/32 in Dia, Domestic
SPECIFICATIONS
| Dimensions | : | 3-21/32 in Dia |
| Length | : | 6-29/32 in |
| Pressure Rating | : | 125 psi |
| Series | : | Boss-Lock™ |
| Fitting/Connector Type | : | Adapter |
| Type | : | Type E |
| Nominal Size | : | 3 in |
| End Style | : | Male Adapter x Hose Shank |
| Material | : | Aluminum |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_300-E-AL_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=28SObBuPDvk&feature=share&list=PL10BD55ADAF82DEDA&index=13
