Dixon® 2900608C
Dixon®

Dixon® 2900608C

loading
Dixon®
Email Print

2900608C

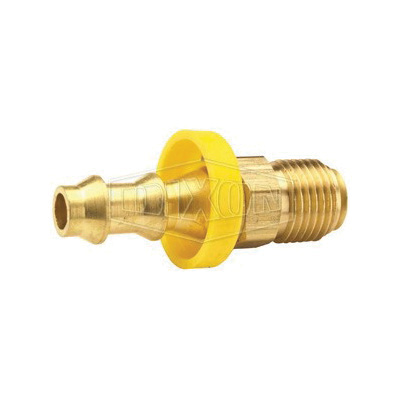

Dixon® 2900608C Hose Barb, 1/2-20 x 3/8 in Nominal, MUNF x Hose Barb, Brass, Domestic

  • Item#: 2900608C
  • Mfr#: 2900608C
  • UPC: 089109700653
    • Push-on fittings are intended for use with lok-on (push-on style) hose
    • No hose clamp or ferrule needed
    • Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/2-20 x 3/8 in Nominal, MUNF x Hose Barb End Style, 1/2 in Hex, 1-47/64 in Length, 2 Barb, 0.92 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

SPECIFICATIONS

Barb Length      :      0.92 in
Hex Size      :      1/2 in
Length      :      1-47/64 in
Number of Barb      :      2
Pressure Rating      :      350 psi
Temperature Rating      :      -40 to 150 deg F
Fitting/Connector Type      :      Adapter
Nominal Size      :      1/2-20 x 3/8 in
End Style      :      MUNF x Hose Barb
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_2710404C_Specification_Sheet.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_290-0608_Catalog.pdf
