Dixon® 2740604C
Dixon®

Dixon® 2740604C

loading
Dixon®
Email Print

2740604C

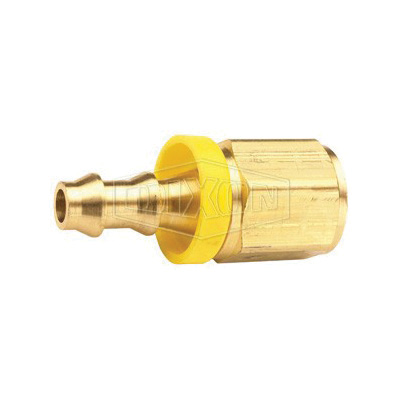

Dixon® 2740604C 274 Push-On Hose Barb, 1/4 x 3/8 in Nominal, FNPT x Hose Barb End Style, Brass, Domestic

  • Item#: BPF32
  • Mfr#: 2740604C
    • Trim hose end with smooth square cut
    • Lubricate either push-on fitting, hose or both
    • Insert push-on fitting into hose until first barb is in hose
    • Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end
    • Push with a steady force until end of hose is covered by yellow plastic cap
    • 0.92 in L barb
    • 2 barbs
    • Lok-On fittings will properly grip Lok-On hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
    • Dryseal construction
    • No hose clamps or ferrules are needed
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon®, 2740604C, Push-On Hose Barb, Series: 274, Fitting/Connector: Adapter, 1/4 x 3/8 in Nominal, FNPT x Hose Barb End Style, 5/8 in Hex, 1-21/32 in Length, 2 Barb, 0.92 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

SPECIFICATIONS

Barb Length      :      0.92 in
Hex Size      :      5/8 in
Length      :      1-21/32 in
Number of Barb      :      2
Pressure Rating      :      350 psi
Series      :      274
Temperature Rating      :      -40 to 150 deg F
Fitting/Connector Type      :      Adapter
Nominal Size      :      1/4 x 3/8 in
End Style      :      FNPT x Hose Barb
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_2710404C_Specification_Sheet.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_BPF32_Catalog.pdf
