- Dixon® 2720404C
2720404C

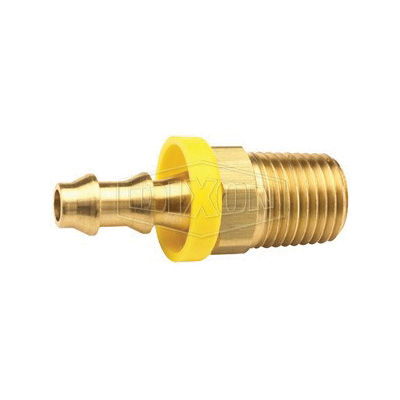

Dixon® 2720404C 272 Hose Barb, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
- CP#:
- Item#: 2720404C
- Mfr#: 2720404C
- Push-on fittings are intended for use with lok-on (push-on style) hose
- Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
- No hose clamps or ferrules are needed
- Dryseal construction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon®, 2720404C, Hose Barb, Series: 272, Fitting/Connector: Adapter, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, 9/16 in Hex, 1.61 in Length, 2 Barb, 0.77 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
SPECIFICATIONS
| Barb Length | : | 0.77 in |
| Hex Size | : | 9/16 in |
| Length | : | 1.61 in |
| Number of Barb | : | 2 |
| Pressure Rating | : | 350 psi |
| Series | : | 272 |
| Temperature Rating | : | -40 to 150 deg F |
| Fitting/Connector Type | : | Adapter |
| Nominal Size | : | 1/4-18 x 1/4 in |
| End Style | : | MNPT x Hose Barb |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_2710404C_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_BPN22_Catalog.pdf
