Dixon® 2720402C
Dixon®

Dixon® 2720402C

loading
Dixon®
Email Print

2720402C

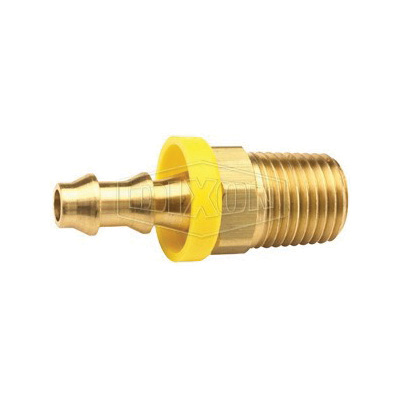

Dixon® 2720402C Hose Barb, 1/8-27 x 1/4 in Nominal, MNPT x Hose Barb, Brass, Domestic

  • Item#: 2720402C
  • Mfr#: 2720402C
    • Push-on fittings are intended for use with lok-on (push-on style) hose
    • No hose clamp or ferrule needed
    • Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/8-27 x 1/4 in Nominal, MNPT x Hose Barb End Style, 7/16 in Hex, 1-27/64 in Length, 2 Barb, 0.77 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause cancer, and one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Barb Length      :      0.77 in
Hex Size      :      7/16 in
Length      :      1-27/64 in
Number of Barb      :      2
Pressure Rating      :      350 psi
Temperature Rating      :      -40 to 150 deg F
Fitting/Connector Type      :      Adapter
Nominal Size      :      1/8-27 x 1/4 in
End Style      :      MNPT x Hose Barb
Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_2710404C_Specification_Sheet.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_BPN21_Catalog.pdf
