Dixon®
172C-0404

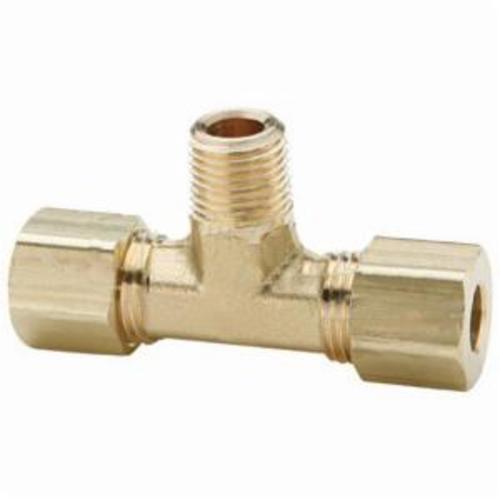

Dixon® 172C-0404 The Right Connection Tube-to-Pipe Branch Tee, 1/4 in x 7/16-24 Nominal, Tube x Straight MPT End Style, Brass, Domestic
- Item#: 172C-0404
- Mfr#: 172C-0404
- UPC: 697464422969
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- No flaring, soldering or other preparation of tubing necessary to assemble
- Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® The Right Connection Tube-to-Pipe Branch Tee, Series: 172C, Fitting/Connector Type: Tee, 1/4 in x 7/16-24 Nominal, Tube x Straight MPT, 0.03 in Thickness, 300 psi, -65 to 250 deg F, Brass, Domestic
SPECIFICATIONS
| Pressure Rating | : | 300 psi |
| Series | : | 172C |
| Temperature Rating | : | -65 to 250 deg F |
| Thickness | : | 0.03 in |
| Fitting/Connector Type | : | Tee |
| Nominal Size | : | 1/4 in x 7/16-24 |
| End Style | : | Tube x Straight MPT |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
