- Dixon® 169C-0606
169C-0606

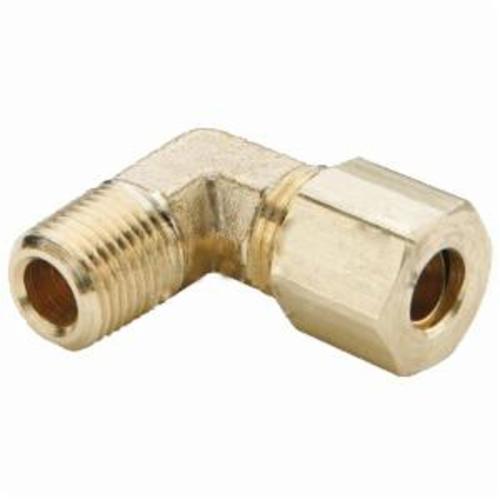

Dixon® 169C-0606 The Right Connection Tube-to-Pipe Elbow, 3/8 in x 9/16-24 Nominal, Tube x Straight MPT End Style, Brass, Domestic
- CP#:
- Item#: 169C-0606
- Mfr#: 169C-0606
- UPC: 697464422723
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- No flaring, soldering or other preparation of tubing necessary to assemble
- Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® The Right Connection Tube-to-Pipe Elbow, Series: 169C, Fitting/Connector Type: 90 deg Elbow, 3/8 in x 9/16-24 Nominal, Tube x Straight MPT, 0.032 in Thickness, 1.03 in Length, 200 psi, -65 to 250 deg F, Brass, Domestic
SPECIFICATIONS
| Length | : | 1.03 in |
| Pressure Rating | : | 200 psi |
| Series | : | 169C |
| Temperature Rating | : | -65 to 250 deg F |
| Thickness | : | 0.032 in |
| Fitting/Connector Type | : | 90 deg Elbow |
| Nominal Size | : | 3/8 in x 9/16-24 |
| End Style | : | Tube x Straight MPT |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1098_Catalog.pdf
