Dixon®
15030FXFMI00000

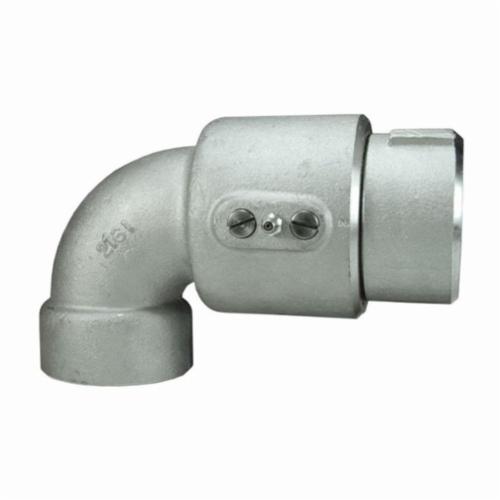

Dixon® 15030FXFMI00000 Single Plane Style 30 O-Ring Swivel Joint With Buna-N Seal, 1-1/2 in Nominal, FNPT End Style, Malleable Iron, Domestic
- Item#: 15030FXFMI00000
- Mfr#: 15030FXFMI00000
- UPC: 697464203841
- O-ring pressure seal ensures a leak proof seal and smooth rotation with lower torque
- Full 360 deg rotational movement
- Wide spacing between dual ball bearing raceways ensures greater load bearing capacity
- Precision-machined design ensures alignment and years of trouble free service
- Hydrostatic testing is performed on all swivels before shipment
- O-ring dust seal protects the ball races and seals chamber from outside elements
- Industries range from petroleum, petrochemical, refining, mining, distilling, paint, farm irrigation and fertilizing, wastewater treatment plants and food and beverage process equipment
- They are found in blending plants, drum filling applications, fluid and dry bulk transfer, vacuum trucks, oil and gas trucks and water trucks
- Larger swivels can be found in the steel industry, marine bulk transfer and many more
- Buna-N pressure and dust seal
- Carbon steel ball bearings
- Standard grease
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® O-Ring Swivel Joint, Single Plane Style 30, Swivel Fitting/Connector, 1-1/2 in Nominal, FNPT End Style, Malleable Iron, 4-11/16 in L x 3 in H Dimensions, Domestic
SPECIFICATIONS
| Dimensions | : | 4-11/16 in L x 3 in H |
| Type | : | Single Plane Style 30 |
| Fitting/Connector Type | : | Swivel |
| Nominal Size | : | 1-1/2 in |
| End Style | : | FNPT |
| Material | : | Malleable Iron |
| Domestic/Import | : | Domestic |
