- Dixon® 1041616C
1041616C

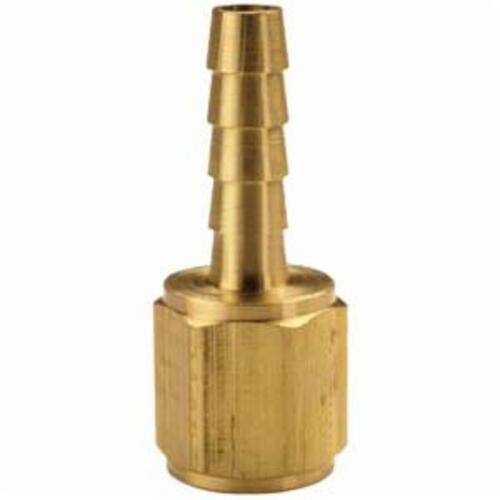

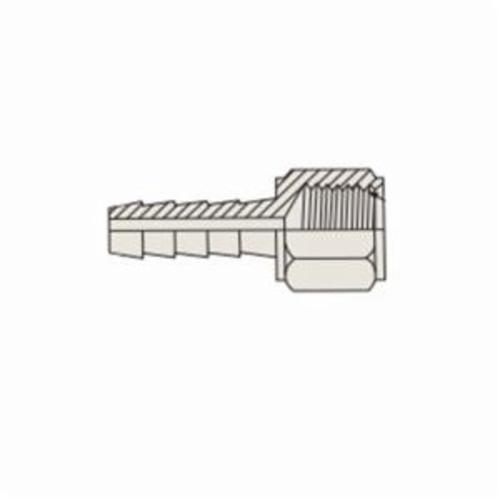

Dixon® 1041616C 104 Solid Insert, 1 in Nominal, FNPT x Hose Barb End Style, Brass, Domestic
- CP#:
- Item#: BF88
- Mfr#: 1041616C
- UPC: 089109710874
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Nipple for connecting pipes and hoses of different types
- Connects to a hose on one end and an NPTF male connector on the other
- Brass for corrosion resistance, ductility at high temperatures and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 1.19 in L barb
- 5 barbs
- Solid female insert
- Dryseal construction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon®, 1041616C, Insert, Solid, Series: 104, Fitting/Connector: Adapter, 1 in Nominal, FNPT x Hose Barb End Style, 1-7/16 in Hex, 2-21/64 in Length, 5 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
SPECIFICATIONS
| Barb Length | : | 1.19 in |
| Hex Size | : | 1-7/16 in |
| Length | : | 2-21/64 in |
| Number of Barb | : | 5 |
| Pressure Rating | : | 150 psi |
| Series | : | 104 |
| Temperature Rating | : | -40 to 160 deg F |
| Fitting/Connector Type | : | Adapter |
| Type | : | Solid |
| Nominal Size | : | 1 in |
| End Style | : | FNPT x Hose Barb |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_102_0202_Catalog.pdf -
