1041212C

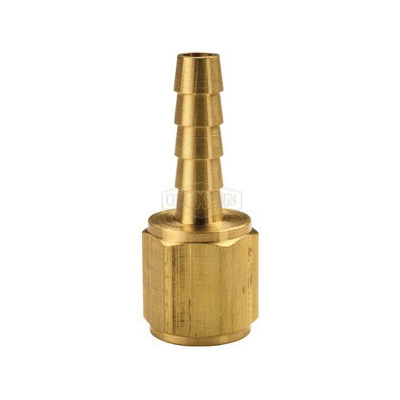

Dixon® 1041212C 104 Standard Solid Hose Barb, 3/4 in Nominal, FNPT x Hose Barb End Style, Brass, Domestic
- CP#:
- Item#: 1041212C
- Mfr#: 1041212C
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 1.19 in L barb
- 4 barbs
- Solid female insert
- Dryseal construction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon®, 1041212C, Hose Barb, Standard Solid, Series: 104, Fitting/Connector: Adapter, 3/4 in Nominal, FNPT x Hose Barb End Style, 1-3/16 in Hex, 2.19 in Length, 4 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
SPECIFICATIONS
| Barb Length | : | 1.19 in |
| Hex Size | : | 1-3/16 in |
| Length | : | 2.19 in |
| Number of Barb | : | 4 |
| Pressure Rating | : | 150 psi |
| Series | : | 104 |
| Temperature Rating | : | -40 to 160 deg F |
| Fitting/Connector Type | : | Adapter |
| Type | : | Standard Solid |
| Nominal Size | : | 3/4 in |
| End Style | : | FNPT x Hose Barb |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_1020202C_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_BF66_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=BDMWIoXXsYk&list=PL10BD55ADAF82DEDA&feature=share&index=22
