- Dixon® 1030606C
1030606C

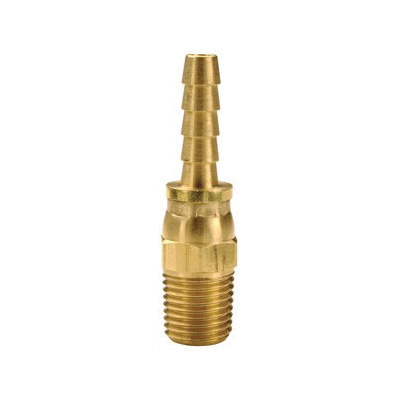

Dixon® 1030606C Hose Barb, 3/8 in, MNPT Swivel x Hose Barb, Brass, Domestic
- CP#:
- Item#: 103-0606
- Mfr#: 1030606C
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Swivel for assembly convenience only, not for live swivel applications
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hose Barb, Fitting/Connector Type: Adapter, 3/8 in Nominal, MNPT Swivel x Hose Barb End Style, 11/16 in Hex, 2-1/8 in Length, 4 Barb, 0.97 in Barb Length, Brass, Domestic
SPECIFICATIONS
| Barb Length | : | 0.97 in |
| Hex Size | : | 11/16 in |
| Length | : | 2-1/8 in |
| Number of Barb | : | 4 |
| Fitting/Connector Type | : | Adapter |
| Nominal Size | : | 3/8 in |
| End Style | : | MNPT Swivel x Hose Barb |
| Material | : | Brass |
| Domestic/Import | : | Domestic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_1020202C_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_103-0606_Catalog.pdf -
VIDEO LINK
http://www.youtube.com/watch?v=BDMWIoXXsYk&list=PL10BD55ADAF82DEDA&feature=share&index=22
