86947

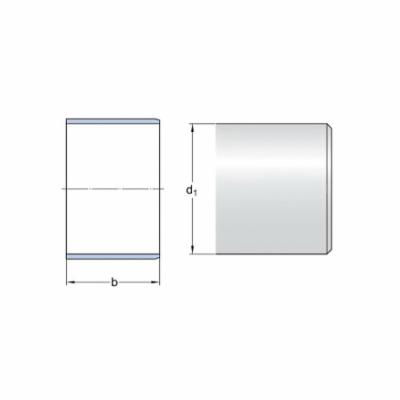

CR Seals® 86947 Type LDSLV4 Wear Sleeve, 12-1/2 in ID x 12.688 in OD x 2-1/2 in W, 12-1/2 in Dia Shaft, Carbon Steel

  • Item#: 86947CR
  • Mfr#: 86947
  • UPC: 085311991285
    • The new generation SKF® speedy-sleeve uses a proprietary stainless steel material and manufacturing process, resulting in an optimized seal counter face surface that minimizes wear on both sleeve and sealing lip
    • The proprietary material provides increased strength and excellent ductility properties of the sleeve
    • Imperceptible lubricant pockets enable the lubricant to reside on the sleeve and thereby prevent dry running of the sealing lip that otherwise can create excessive wear
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Outside contamination particles and polishing friction between a rotating shaft and a seal can, over time, result in severe shaft damage. Instead of repairing or replacing the damaged shaft, SKF® recommends using wear sleeves for heavy industrial applications (LDSLV) for shaft diameters ranging from 211.15 to 1143 mm (8.313 to 45 in).

CR Seals® Wear Sleeve, Type LDSLV4, 12-1/2 in ID, 12.688 in OD, 2-1/2 in Width, 12-1/2 in Shaft Diameter, Carbon Steel, Chromium Plated

SPECIFICATIONS

Finish      :      Chromium Plated
Type      :      Type LDSLV4
Inside Diameter      :      12-1/2 in
Outside Diameter      :      12.688 in
Width      :      2-1/2 in
Shaft Diameter Range      :      12-1/2 in
Material      :      Carbon Steel
