CR Seals® 409403
CR Seals®

CR Seals® 409403

loading
CR Seals® 409403
CR Seals®
Email Print

409403

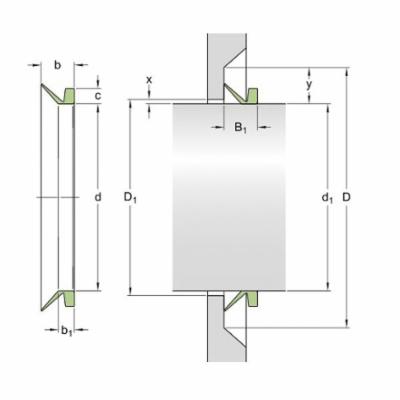

CR Seals® 409403 Type VR4 V-Ring Seal, 35.4331 in ID x 41.535 in OD x 1.968 in W, 36.7323 to 37.1654 in Dia Shaft, NBR

  • Item#: 409403CR
  • Mfr#: 409403
  • UPC: 085311435437
    • V-ring consists of a seal body, flexible and conical-shaped sealing lip and an integral, resilient hinge
    • It is stretched and installed directly on the shaft, where it is held in place by the inherent tension of the seal body
    • It rotates with the shaft and seals axially against a stationary counter face
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

V-ring seals (or V-rings) are unique all-rubber seals for rotating shafts and are used in an extremely wide range of applications. The V-ring can be used alone to protect a wide assortment of bearing types from contaminants. They are also often used as secondary seals to protect primary seals in highly contaminated environments.

CR Seals® V-Ring Seal, Type VR4, 35.4331 in ID, 41.535 in OD, 1.968 in Width, 36.7323 to 37.1654 in Shaft Diameter, -40 to 210 deg F, NBR

SPECIFICATIONS

Temperature Rating      :      -40 to 210 deg F
Type      :      Type VR4
Inside Diameter      :      35.4331 in
Outside Diameter      :      41.535 in
Width      :      1.968 in
Shaft Diameter Range      :      36.7323 to 37.1654 in
Material      :      NBR

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/768/SKF_524371_Catalog.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/99/SKF_409403_Specification_Sheet.pdf
