CR Seals® 32441
CR Seals®

CR Seals® 32441

loading
CR Seals®

32441

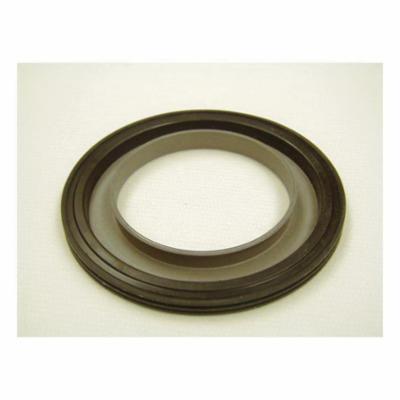

CR Seals® 32441 Type X15 Small Bore Radial Shaft Seal, 3-1/4 in ID x 3.244 in OD x 0.313 in W, Nitrile Lip

  • Item#: 32441CR
  • Mfr#: 32441
  • UPC: 085311031271
    • The lip has a sealing edge that is formed by molding, cutting or grinding
    • It is normally pressed against the counter face surface of the shaft, with a defined radial load, by a garter spring
    • The edge of the sealing lip and the shaft counter face surface form the most important functional area of a radial shaft seal
    • The sealing effect of the lip can be enhanced by designing the contact area of the lip with hydrodynamic features
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

CR Seals® Small Bore Radial Shaft Seal, Type X15, 3-1/4 in Inside Dia, 3.244 in Outside Dia, 0.313 in Width, R Cross Section, -40 to 212 deg F, Nitrile Lip, Bore Tite Coating, Green

SPECIFICATIONS

Color      :      Green
Cross Section Shape      :      R
Finish      :      Bore Tite Coating
Temperature Rating      :      -40 to 212 deg F
Type      :      Type X15
Inside Diameter      :      3-1/4 in
Outside Diameter      :      3.244 in
Width      :      0.313 in
Lip Material      :      Nitrile

DOCUMENTS

  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/399/SKF_32441_Specification_Sheet.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/626/SKF_8088_Catalog.pdf
