CR Seals® 280X320X18 HDS1 R
CR Seals®

CR Seals® 280X320X18 HDS1 R

loading
CR Seals® 280X320X18 HDS1 R
CR Seals®
Email Print

280X320X18 HDS1 R

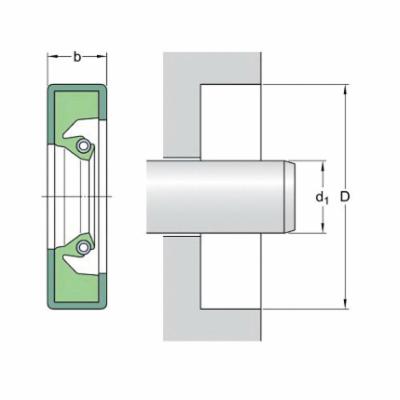

CR Seals® 280X320X18 HDS1 R Type HDS1 Large Diameter Radial Shaft Seal, 280 mm ID x 320 mm OD, 18 mm W, Nitrile Lip

  • Item#: 280X320X18 HDS1 R
  • Mfr#: 280X320X18 HDS1 R
  • UPC: 085311116060
    • With heavy duty metal case and stainless steel garter spring
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

CR Seals® Large Diameter Radial Shaft Seal, Type HDS1, 280 mm Inside Dia, 320 mm Outside Dia, 18 mm Width, R Cross Section, -40 to 212 deg F, Nitrile Lip

SPECIFICATIONS

Cross Section Shape      :      R
Temperature Rating      :      -40 to 212 deg F
Type      :      Type HDS1
Inside Diameter      :      280 mm
Outside Diameter      :      320 mm
Width      :      18 mm
Lip Material      :      Nitrile

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/273/SKF_280X320X18_HDS1_R_Specification_Sheet.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/626/SKF_8088_Catalog.pdf
