22022

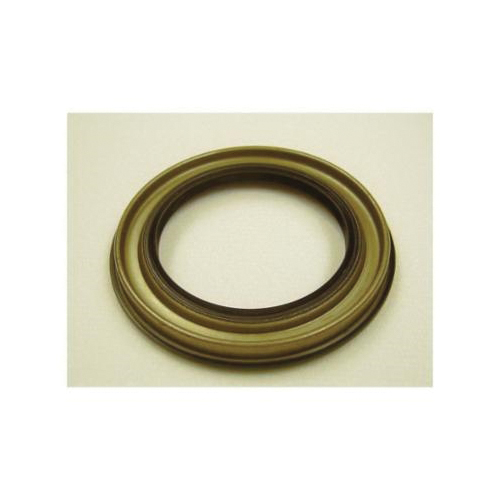

CR Seals® 22022 Type HMSA57 Small Bore Radial Shaft Seal, 2.205 in ID x 2.839 in OD, 0.453 in W, Nitrile Lip

  • Item#: 22022CR
  • Mfr#: 22022
  • UPC: 085311024525
    • The lip has a sealing edge that is formed by molding, cutting or grinding
    • It is normally pressed against the counter face surface of the shaft, with a defined radial load, by a garter spring
    • The edge of the sealing lip and the shaft counter face surface form the most important functional area of a radial shaft seal
    • The sealing effect of the lip can be enhanced by designing the contact area of the lip with hydrodynamic features
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

CR Seals® Small Bore Radial Shaft Seal, Type HMSA57, 2.205 in Inside Dia, 2.839 in Outside Dia, 0.453 in Width, R Cross Section, -40 to 212 deg F, Nitrile Lip, Bore Tite Coating, Green

SPECIFICATIONS

Color      :      Green
Cross Section Shape      :      R
Finish      :      Bore Tite Coating
Temperature Rating      :      -40 to 212 deg F
Type      :      Type HMSA57
Inside Diameter      :      2.205 in
Outside Diameter      :      2.839 in
Width      :      0.453 in
Lip Material      :      Nitrile

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/626/SKF_8088_Catalog.pdf
