RC-100-KW

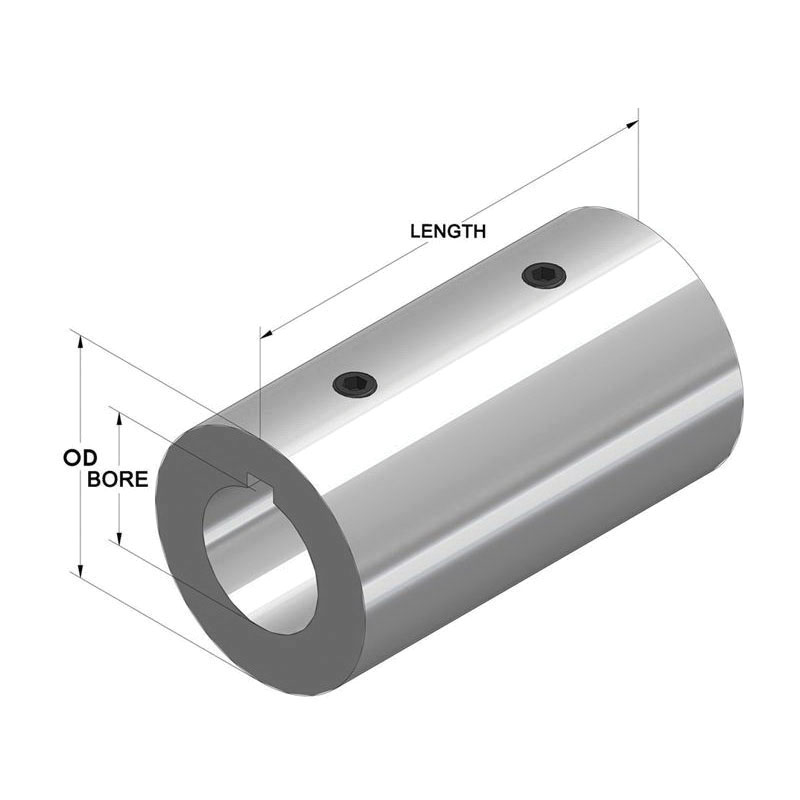

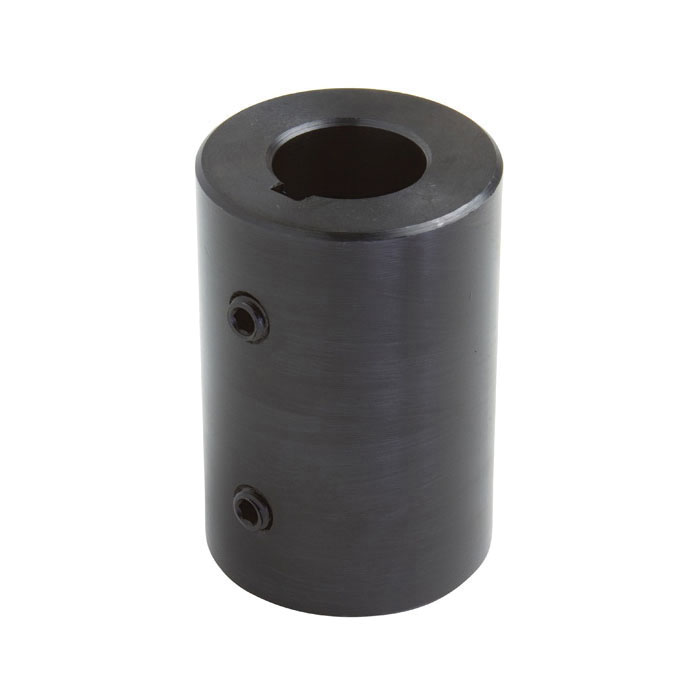

Climax RC-100-KW Setscrew Rigid Coupling With 1/4 x 1/8 in Keyway, 1 in Dia Bore, 2 in OD, 3 in OAL, 170 in-lb Torque
- CP#:
- Item#: RC-100-KW
- Mfr#: RC-100-KW
- UPC: 044861351215
- Traditional cost effective rigid coupling design
- Provides torque transmission and alignment
- Cup point setscrews impinge the shaft providing holding power
- Requires disassembly of shaft components upon replacement
- Steel hex socket setscrew
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rigid couplings serve as components for timing, joining or aligning of shafts at lower speeds and torque, especially where zero backlash is desired. They are the most basic, economical, cost effective coupling option and applicable for aligned shafts only.
Climax Setscrew Rigid Coupling, Series: RC Series, 1 in Bore, 2 in OD, 3 in Overall Length, 170 in-lb Torque, 5/16-18 UN-3A x 1/2 in Screw, Steel, Black Oxide
SPECIFICATIONS
| Material | : | Steel |
| Series | : | RC Series |
| Outside Diameter | : | 2 in |
| Overall Length | : | 3 in |
| Screw Size | : | 5/16-18 UN-3A x 1/2 in |
| Finish | : | Black Oxide |
| Torque Rating | : | 170 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_2CC_025_025_Catalog.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_2CC_025_025_Technical_Bulletin.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_RC_100_KW_Specification_Sheet.pdf
