CC-112-100

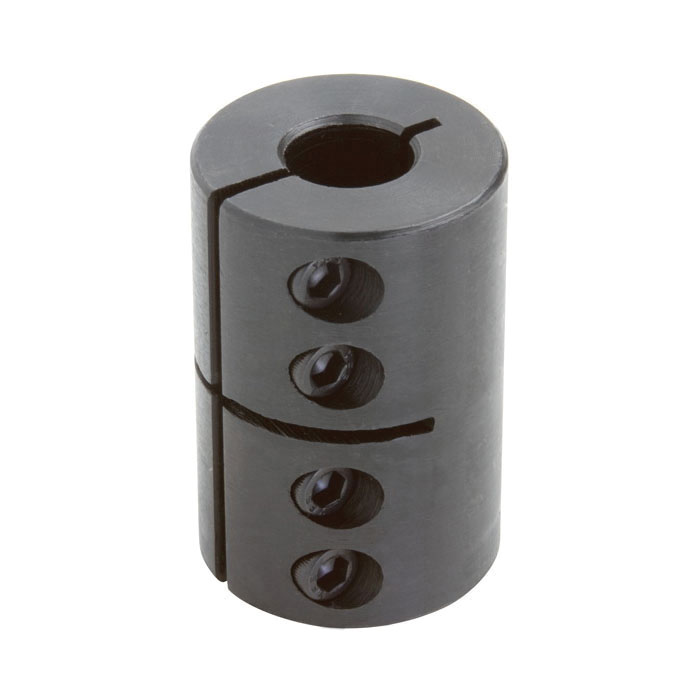

Climax CC-112-100 1-Piece Large Clamping Coupling With Recessed Screw, 1 in Dia Bore, 2-1/8 in OD, 3-1/4 in OAL, 175 in-lb Torque
- CP#:
- Item#: CC-112-100
- Mfr#: CC-112-100
- UPC: 044861401651
- Socket head cap screws provide holding power
- Additional holding power over setscrew
- Requires disassembly of shaft components upon replacement
- Without keyway
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
1-Piece Clamping Couplings are designed to handle applications that require a greater torque capacity than Setscrew Couplings without marring the shaft. Recessed screw styles of 1-Piece Clamping Couplings are available to provide safety with an outside surface free of major projections.
Climax Clamping Coupling, 1-Piece Large, Series: CC Series, 1 in Bore, 2-1/8 in OD, 3-1/4 in Overall Length, 175 in-lb Torque, Steel, Black Oxide
SPECIFICATIONS

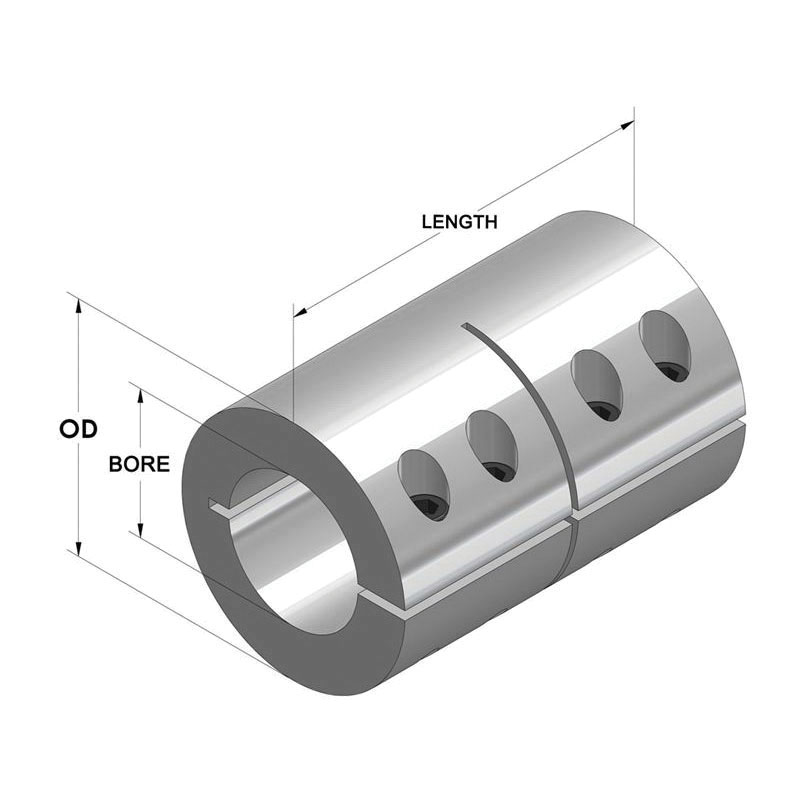

| Type | : | 1-Piece Large |
| Material | : | Steel |
| Series | : | CC Series |
| Outside Diameter | : | 2-1/8 in |
| Overall Length | : | 3-1/4 in |
| Finish | : | Black Oxide |
| Torque Rating | : | 175 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_2CC_025_025_Catalog.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_2CC_025_025_Technical_Bulletin.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_112_100_Specification_Sheet.pdf
