- Climax C405E-193
C405E-193

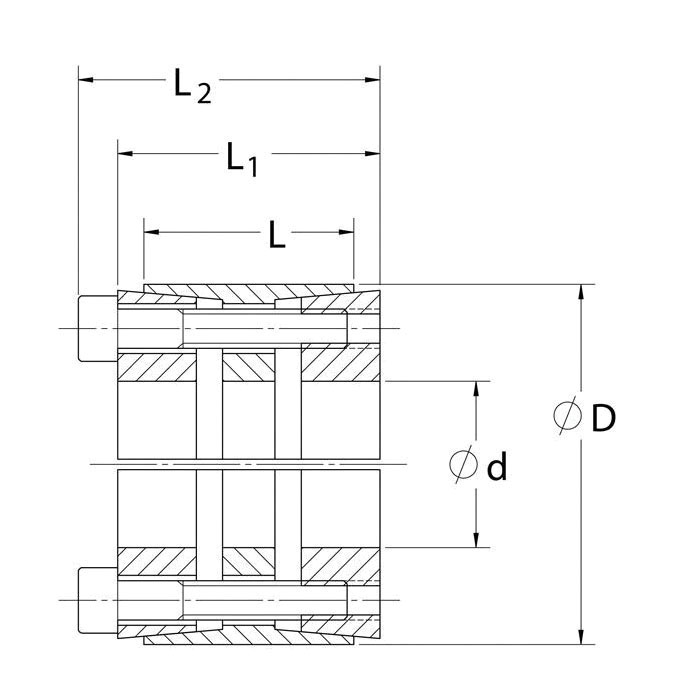

Climax C405E-193 C405 Heavy Duty Keyless Locking Assembly, 1-15/16 in Dia Bore, 3.15 in OD, 4.812 in Dia Hub, 2.913 in OAL, Steel
- CP#:
- Item#: C405E-193
- Mfr#: C405E-193
- UPC: 044861075401
- Wide, shallow taper, self-centering design for use in through-bored components with extremely high torque and or bending requirements
- Mounted component remains fixed axially during installation
- Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
- As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
- No key means infinite radial and axial positioning for precise alignment and timing
- Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Climax Series C405 transmits continuous reversing bending as well as torque in highly loaded belt conveyor head pulleys. Climax and MAV together have decades of experience designing, specifying and manufacturing KLDs for the most demanding applications.
Climax Keyless Locking Assembly, Heavy Duty, Series: C405, 1-15/16 in Bore Dia, 3.15 in Outside Dia, 4.812 in Hub Dia, 2990 ft-lb Transmissible Torque, 37041 lbf Transmissible Thrust, 29275 psi Shaft Contact Pressure, 18009 psi Hub Contact, M8x55 Screw, 2.913 in Overall Length, 0 to 400 deg F, Steel
SPECIFICATIONS
| Series | : | C405 |
| Bore Diameter | : | 1-15/16 in |
| Outside Diameter | : | 3.15 in |
| Overall Length | : | 2.913 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 18009 psi |
| Type | : | Heavy Duty |
| Temperature Rating | : | 0 to 400 deg F |
| Shaft Contact Pressure | : | 29275 psi |
| Screw Size | : | M8x55 |
| Transmissible Thrust | : | 37041 lbf |
| Transmissible Torque | : | 2990 ft-lb |
| Hub Diameter | : | 4.812 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_100_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_193_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Catalog.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Climax_C600E_062_Technical_Bulletin.pdf -
